Design Guide for Laser Cut and Bending Parts
Useful information on supported 3D formats, how to properly prepare your files for laser cutting and bending, and our process capacities and limitations.
Content
Bending Process
-
Capabilities of the bending process >Capabilities of the bending process >
-
Appearance and finishes >Appearance and finishes >
Format and Software
-
Supported formats >Supported formats >
-
Recommended software >Recommended software >
Preparing Your File
-
Scale >Scale >
-
Content >Content >
-
Bendings >Bendings >
-
Unsupported geometries >Unsupported geometries >
-
Angles >Angles >
-
Minimum bending height >Minimum bending height >
-
Minimum distance between bendings >Minimum distance between bendings >
-
Z-shaped bendings >Z-shaped bendings >
-
U-shaped bendings >U-shaped bendings >
-
Other considerations >Other considerations >
Process features
-
Bending Marks >Bending Marks >
Additional Considerations
-
Relief Cuts >Relief Cuts >
-
Entities in Contact >Entities in Contact >
-
Overlaps >Overlaps >
-
Common Errors >Common Errors >
-
Delivery of Parts >Delivery of Parts >
-
Evaluation of Additional >Evaluation of Additional >
Click on the topics to access them.
Check out our
Bending Process
At LaserBoost, we perform sheet metal bending using the “air bending” method with the latest state-of-the-art technology from Trumpf™.

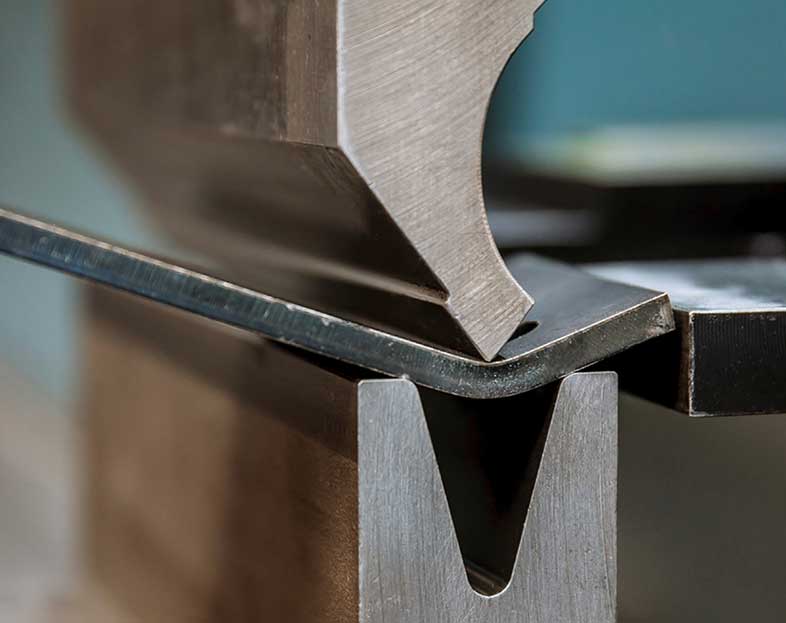

This method requires a punch and die to shape a flat geometry into a volumetric one.
We have the experience and machinery necessary to ensure manufacturing that aligns with your designs and delivers a superior quality finish.
> Capabilities of the bending process
Our precision and maximum measurements at a glance:
Accurate folding
Tight Tolerances
3000 x 1500 mm
Maximum Size of Your Unfolded Part
0.3 mm ~ 8 mm
Bending Thickness
* Check here for manufacturing tolerances
or get more information about our bending service.
Heat Deformation in Laser Cutting

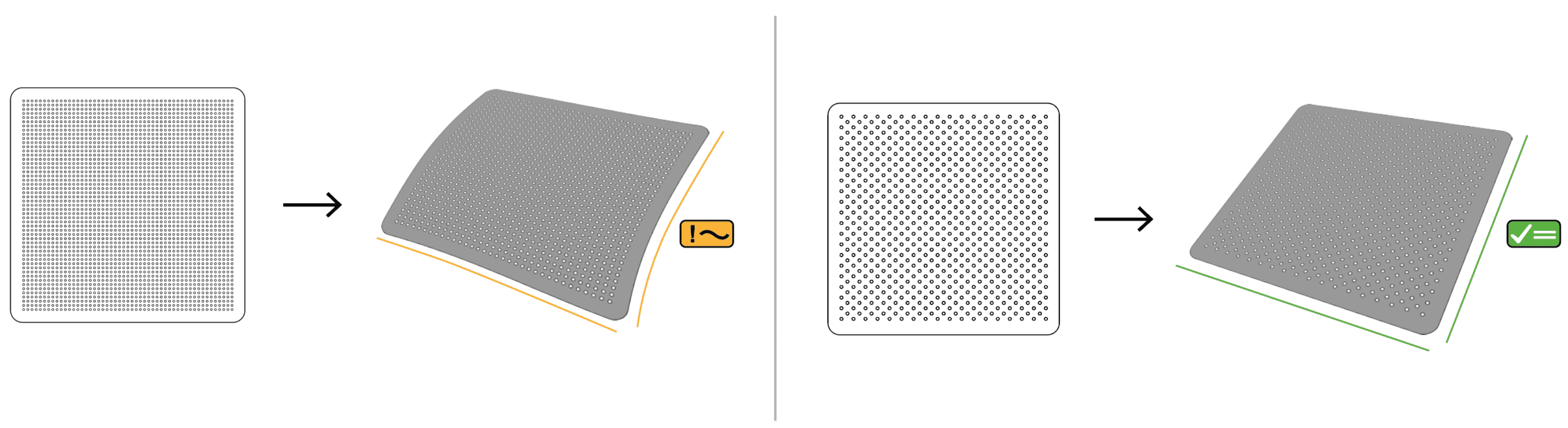

Laser cutting is a precise technique for manufacturing parts. However, if a design has a high cutting density, elevated temperatures can be generated during the process. These temperatures might lead to deformations in the part, compromising its quality and functionality. Therefore, it’s important to consider the distribution of cuts and adjust the design to avoid excessive heat concentrations.
At LaserBoost, we employ different cutting strategies to deal with this effect. Nevertheless, in extreme cases, the effect might still be visible. One way to reduce this effect, especially common in grid patterns, is to space out the holes. Additionally, this approach can lead to cost savings for your part.
Design with High Cutting Density
Design with Moderate Cutting Density
Formats and Software
> Supported formats
At LaserBoost, we work with 3D CAD files to ensure maximum precision in cutting and bending. Below, we list the accepted formats and their requirements.
3D Formats
Example .STEP 1 Preview
Example .STEP 2 Preview
Example .STEP 3 Preview
Unlike 2D files, the thickness of the part cannot be modified in the configurator for 3D files. The files must already be designed with the desired thickness.
Regarding export from other formats: We do not accept STEP/STP files exported from STL. The STL format triangulates geometries, creating inaccuracies that make manufacturing difficult. Please submit STEP/STP files generated directly from your CAD software.
Likewise, we will reject parts from design programs that do not have a proper sheet metal drawing module or are based on surface modeling, as they do not guarantee geometries suitable for manufacturing.
Recommended CAD Software
There are many programs for drawing in CAD. The ones listed below are the most commonly used by our clients for laser cutting and bending. All of them offer a free trial version.
CAD Software for Laser Cutting Files with 3D Bending
Autodesk Fusion360™
Perfect to get started, a free program with all the necessary tools to draw any geometry in flat or bent form.
SolidWorks™
The most widely used in the industry, a highly professional tool and a classic in 3D design.
We support STEP format for our laser cutting process with bending. All CAD software can export to this universal format.
Our platform is able to detect all the necessary parameters to show you a price on the fly. You can download some example parts in STEP format below:
If you do not have the STEP file of your project, you can send your instructions to our technical team at info@laserboost.com. They will generate the file for you, but please note that this may incur an additional design fee.
Do you have any doubts about the creation of your files? Contact us.
Preparing your file
The 10 basic points to get your parts ready for our configurator:
> Scale
Your part must be the exact size you want it to be manufactured (1:1 scale), in millimetres. For parts with cutting and bending, the dimensions cannot be edited in the configurator, for different dimensions you will have to modify the file in your CAD software.
> Content
Elements such as note balloons, dimensions, or any other additional markings will not be considered in the manufacturing process.

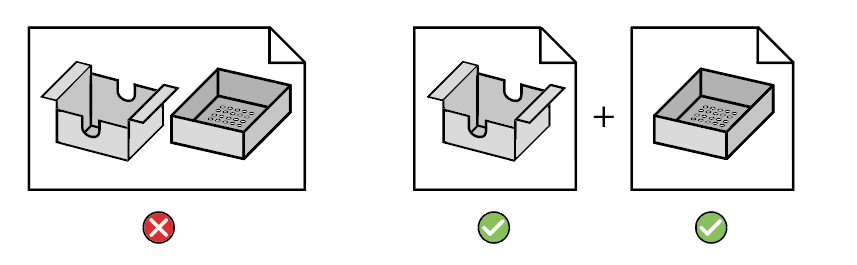

Each file must contain only a single part with its defined geometry, without including any additional elements. We do not accept assemblies.
> Bendings
Our bending forming technology is commonly referred to as “air bending”. Your designs must meet the following guidelines in order to be manufactured correctly.

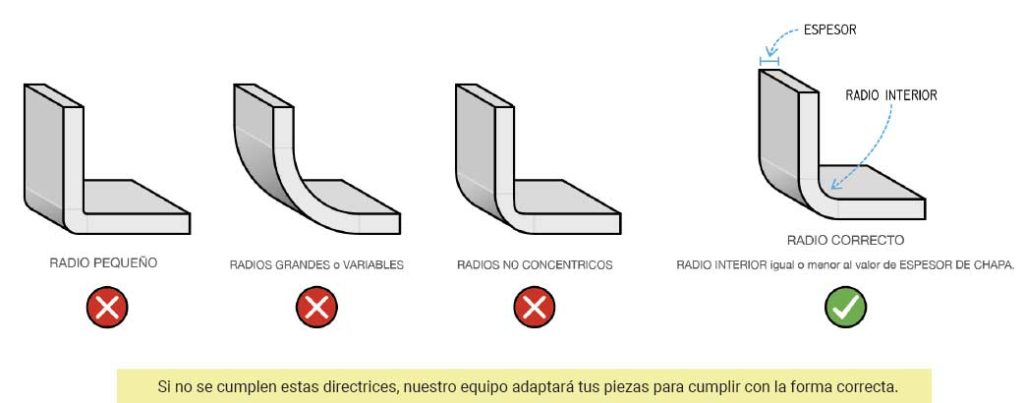

All bendings of your creation must have radius folds. We do not accept files with bendings without a radius.

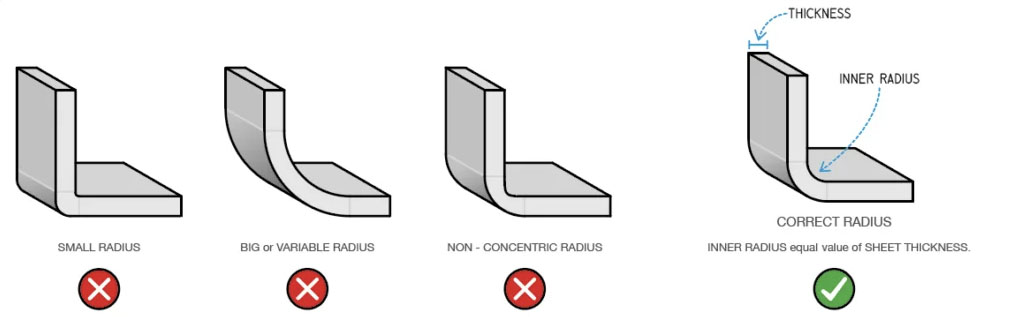

To ensure your file is correct, the inner radius must match the sheet thickness, as this is the industry standard. Non-concentric, smaller, or larger radii are not valid.
If these guidelines are not met, our team will adapt your parts to meet the correct shape.
> Unsupported geometries
We work daily to offer more industrial processes online. Below, we provide some details about our capabilities and production limitations.

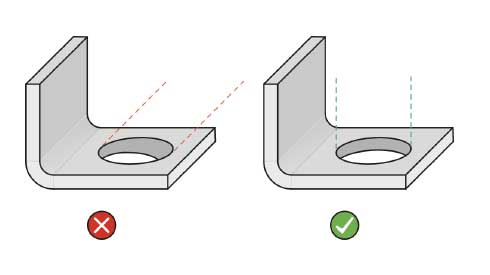

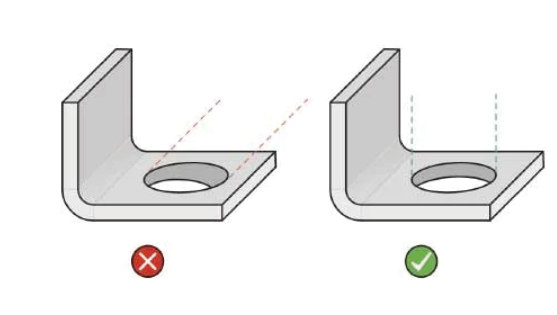

Non-Perpendicular Perforations
Aesthetic Radii and Curvature

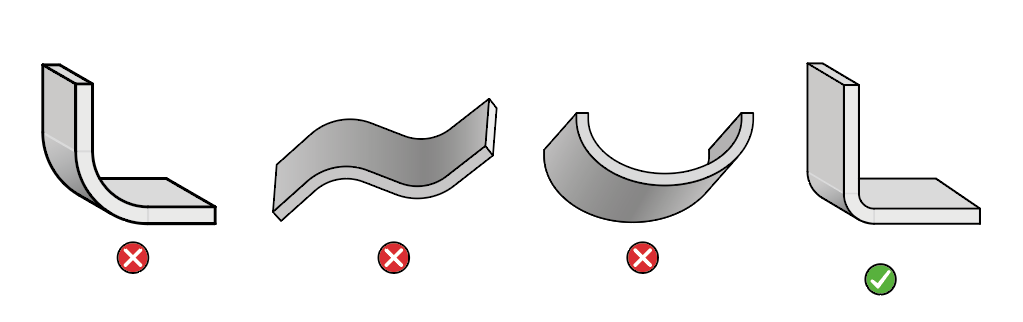

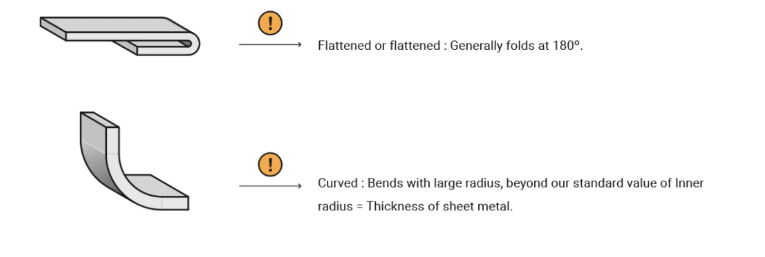

We do not accept aesthetic radii or curvatures in bending. We use the air bending technique, which means we can only create bends with a radius equal to the material thickness.

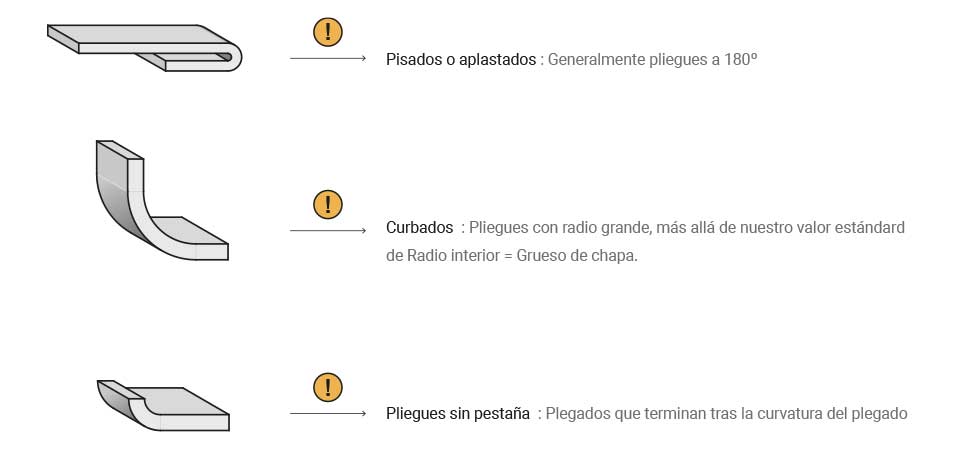

Special Bends
We are continuously expanding our manufacturing capabilities. The geometries below are not yet available, but if your design requires any of them, contact us at info@laserboost.com, our team will evaluate its feasibility and provide a quote.
> Angles

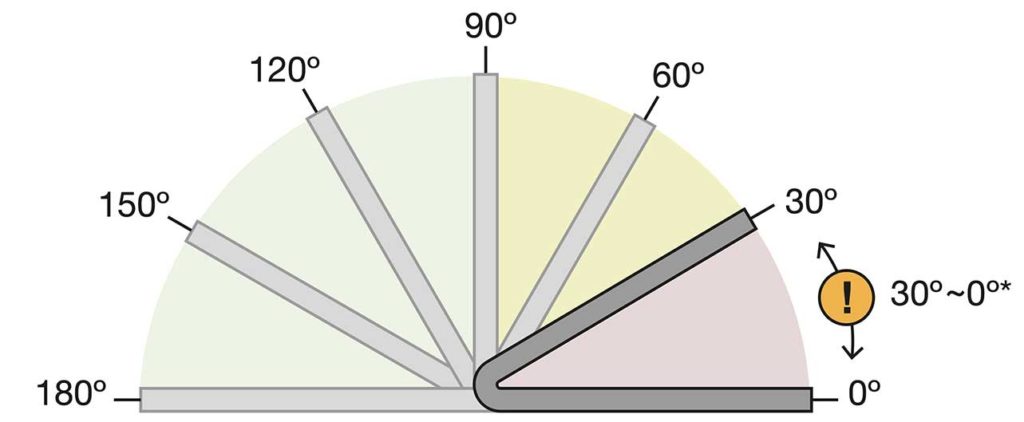

We can perform bendings with any inclination angle within the following limits, depending on the material thickness.
Thickness (mm)
Possible Angle
0.5mm ~ 6.0mm
180º ~ 30º : Possible ✓
30º ~ 0º : Consult with the technical team !
8.0mm<
180º ~ 90º : Possible ✓
90º ~ 0º : Consult with the technical team !
For bendings within the indicated range with the symbol (!), you can inquire about feasibility with our team at info@laserboost.com.

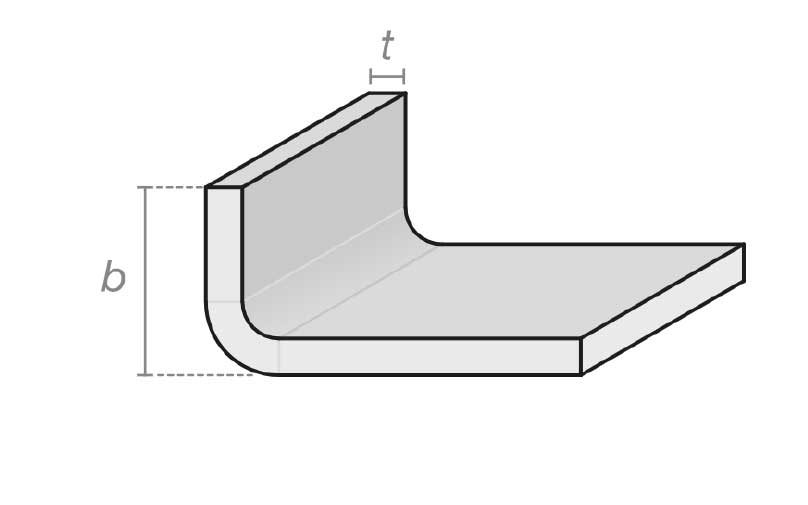

> Minimum Flange Size
To ensure precise and safe bending, it is essential that the size of bent flanges meets a minimum requirement according to the material thickness. This measurement is crucial to protect both the machinery and the safety of our team.
Thickness t (mm)
Minimum bending height b (mm)
0.5
5
0.8
5
1.0
6.5
1.2
8
1.5
9.5
2.0
12.5
2.5
16
3.0
19.5
4.0
24
5.0
32
6.0
40
8.0
40

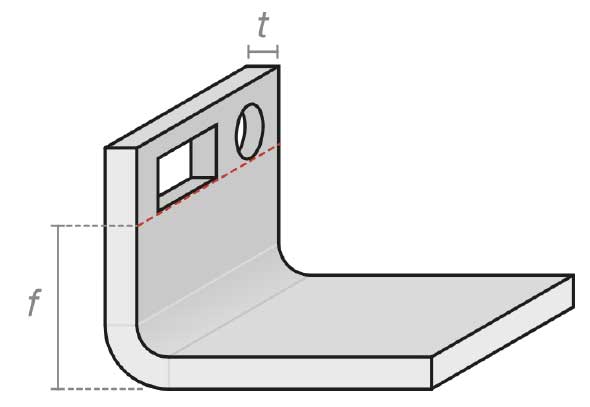

> Minimum distance between bending and shapes
During the bending process, forces are generated that expand and compress the material in areas close to the bend. Any hole, cut, or geometry located within the recommended minimum distances may experience deformations.
Thickness t (mm)
Safe minimum distance f (mm)
0.5
5
0.8
5
1.0
6.5
1.2
8
1.5
9.5
2.0
12.5
2.5
16
3.0
19.5
4.0
24
5.0
32
6.0
40
8.0
40

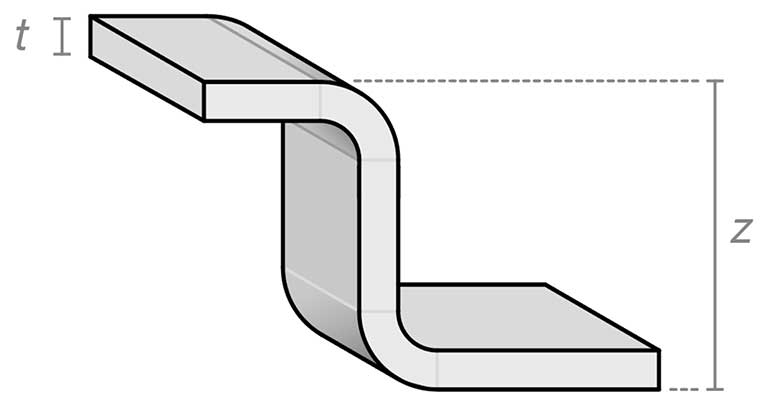

> Z-shaped bendings
In designs with consecutive or very close bends, known as Z-shaped bends, it is essential to maintain a minimum distance between them to ensure precise and feasible manufacturing.
Thickness t (mm)
Safe minimum distance z (mm)
0.5
15
0.8
15
1.0
15
1.2
15
1.5
15
2.0
25
2.5
25
3.0
25
4.0
40
5.0
50
6.0
50
8.0
60
> U-shaped bendings
For channeled geometries, known as “U” or “C” shapes, it is important to consider the limitations of our bending process.
In general, if the geometry is too tall and narrow, it may collide with our bending punches. If this happens, our team will contact you to suggest modifications that enable successful manufacturing.

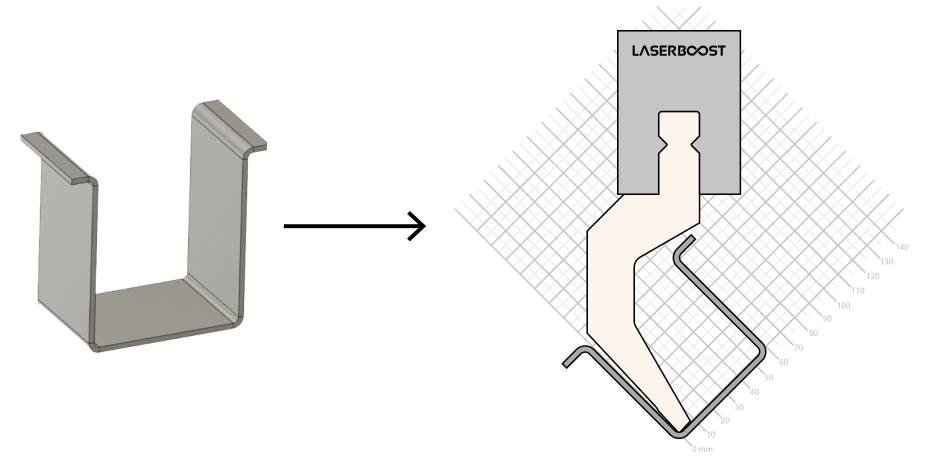

To accurately check if your part will avoid collisions, we provide our bending punch diagram in CAD format. To ensure compatibility, position your bend on the die at 45 degrees and check for any interference.
GEOMETRY WITH COLLISION
Example of correct geometry:
COLLISION-FREE GEOMETRY
We provide you with the diagram of our sharpest tool. This way, you can check for any collision in your design before placing the order.

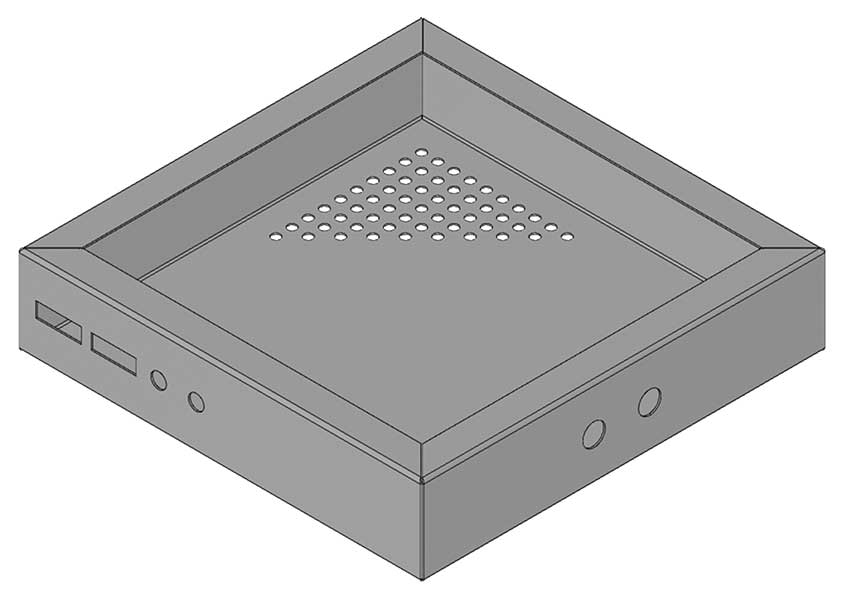

Box-Type Parts

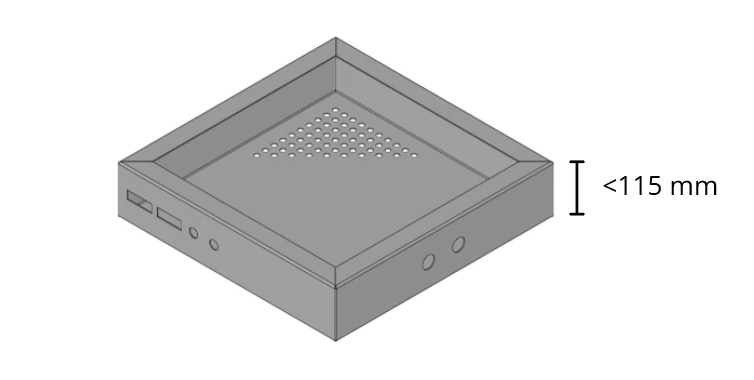

For box- or tray-shaped parts, it is important to consider that the maximum allowed height to avoid collisions is 115 mm.
In this case, we define a “box” as any part with bends on all sides and in the same direction, similar to an open-top shoebox.
This limitation does not apply if the part has one or more sides without bends—in that case, it would no longer be considered a box.
Process features
Bending Marks

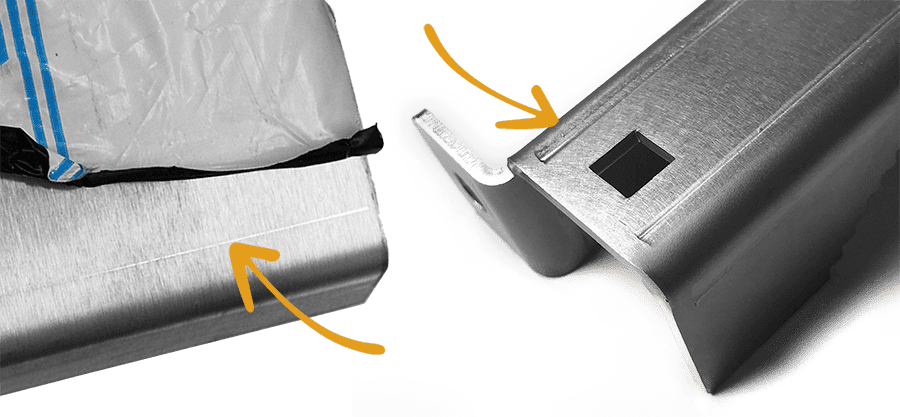

During the bending process, typical bending marks may appear. These marks can be more or less visible depending on the material and thickness. In materials with a PVC protective film (available only for stainless steel), the marks are less visible.
Example of Material with Protective Film
Example of Material without Protective Film
If your part requires a completely mark-free bending process, we have methods to achieve this. Contact us at info@laserboost.com to request this option. Please note that this may incur an additional cost.
Additional Considerations
Relief Cuts

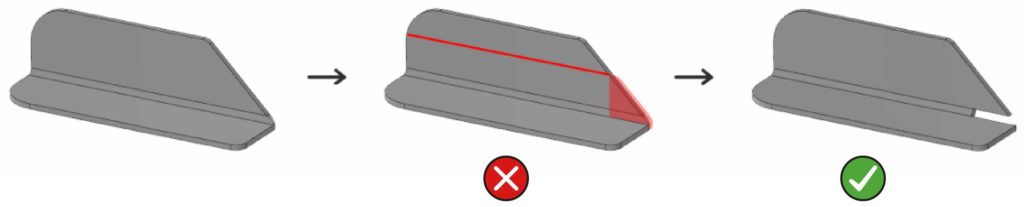

Your design may require shaping or drilling close to the fold, closer than the minimum distances recommended in our manufacturing guidelines. We recommend adjusting your CAD design by either repositioning the holes or adding a relief slot at the bend to prevent potential deformations. These deformations can also alter the final dimensions and tolerances of the part.
In the same way, if a fold ends in a flange height that is lower than the stipulated minimum height, this can lead to deformations, in which case we also advise you to make a groove. An example of this would be parts with sharp folds.
You can find the minimum values of distance to holes in the following link.
Entities in contact

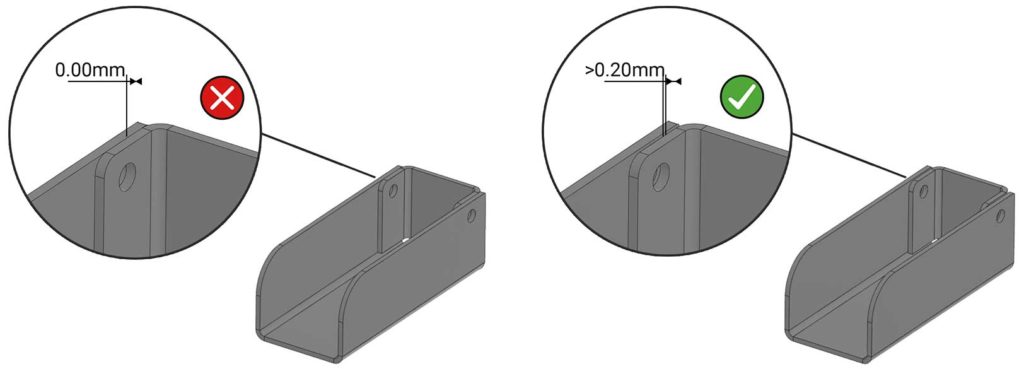

When designing your bent parts, keep in mind that flat entities should not touch each other, neither on walls nor on folds. Always leave a free space, a good measure of separation would be 0.20mm.
Overlaps
For the production of your bent parts, our production team prepares the flat version for the first manufacturing process, laser cutting. It may happen that when the geometry is unfolded, overlapping areas may appear, making it impossible to manufacture. We recommend checking this aspect during the design of your parts to avoid delays in your order.
Common Errors and Solutions in the Configurator
In our part configurator, we alert you to various scenarios in your parts that prevent us from manufacturing or interpreting them correctly.
Here are the most common cases and how to fix them:
Thickness Not Available
Problem: This error occurs when the selected sheet thickness is not available in any of our materials.
Solution: Redesign your part in your CAD program using one of the available thicknesses. You can check the list of accepted thicknesses in our configurator.
Maximum Dimensions Exceeded
Problem: To manufacture a bent part, we first perform a laser cut of its flat development. We have sheets up to 3000 x 1500 mm for most materials and 2000 x 1000 mm for others. If your flat design exceeds these dimensions, manufacturing will not be possible.
Solution: Redesign your part in your CAD program to fit within the permitted dimensions. If your final project allows it, split the design into two or more parts and upload them separately to the configurator.
Unsupported File Format
Problem: Currently, at LaserBoost, we accept CAD files in the following formats: DXF, DWG, EPS, SVG, PDF, Adobe Illustrator, and STEP. We are working to expand compatibility with more formats.
Solution: Export your design in your CAD program to one of the accepted formats before uploading it to the configurator. The currently accepted formats are the most widely used and compatible with most CAD programs.
Geometry Error
Problem: This error may be due to issues in the 3D design or an unmanufacturable geometry, preventing correct interpretation in our automatic analysis module.
Solution: Carefully review our user guide and ensure that your design meets the manufacturing requirements. If the configurator still does not accept your design, contact our technical team at info@laserboost.com.
Delivery of Parts, Not Scrap
At LaserBoost, we only deliver the requested parts, without including interior scraps or exterior waste. This is due to material optimization and the cutting strategy followed during the manufacturing phase, always aiming to ensure minimal material waste and better cutting quality. Interior scraps will only be left in designs where their removal is impossible without damaging the part or its geometry.
Evaluation of Additional and Special Requests
Any comments or special needs provided with the order will be evaluated by our technical department. If the request involves additional adjustments in the manufacturing process, it may incur an extra charge, which will be communicated before proceeding with production.
| ChangeLog | ||
|---|---|---|
|
Date |
Change |
Description |
|
17.Feb.2025 |
Publication |
General modifications have been applied, including the addition of new sections and the update of values in the tables. |
Any questions? LaserBoost’s technical team is at your disposal to help you with your design and validate its productive potential.
Contact us here.
About LaserBoost User Guides, Tolerances and LaserBoost service capabilities.
It is possible to correctly produce parts that do not meet the capabilities listed here, however, correct cutting and/or bending results are not guaranteed by LaserBoost if they do not meet the specifications listed on our website. If a design does not meet any of the advertised tolerances, capacities or limitations, it may be produced by LaserBoost at the customer’s risk. You can validate the correct producibility of your design prior to ordering by contacting our technical team at info@laserboost.com.
For more information about the use of our platform you can visit our Terms and Conditions of Service.
